28

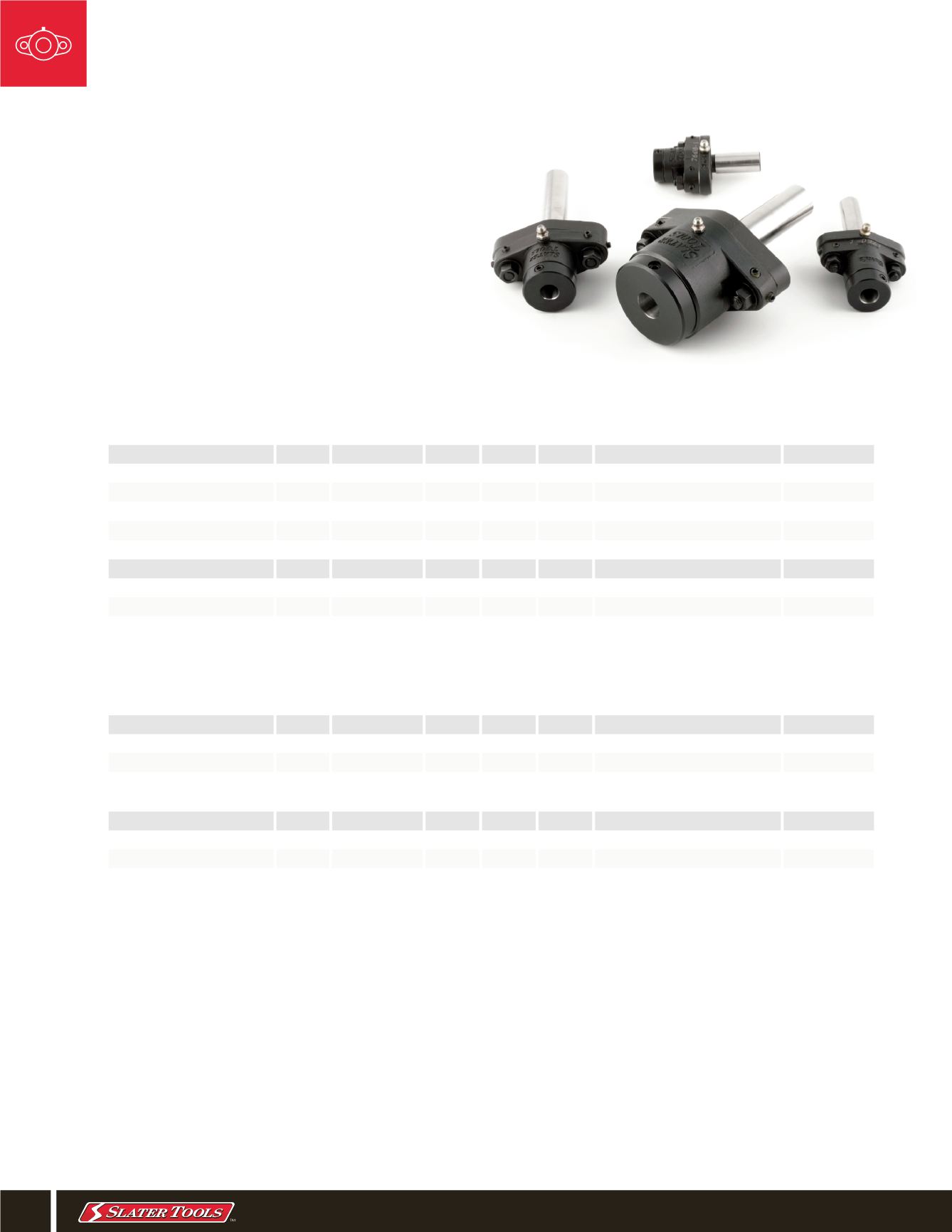

Slater Tools’ Internal Adjustable Tool Holders
are known to be the industry’s best for
reliability and longevity. The ability to be
adjusted allows this Rotary Broach Tool Holder
to be used on any CNC, Swiss, screw, milling
or other turning machine. The tool holder can
be adjusted to compensate for variations in
machine alignment. This holder also can be
used with any overall length broach, which is
useful in applications where you may need to
reach through a deep counter bore.
INTERNAL ADJUSTABLE ROTARY BROACH TOOL HOLDERS
EMAIL:
ADJUSTABLE ROTARY BROACH TOOL HOLDERS
INTERNAL
Straight Shank (SD)
TB TL
(MAX)
BD BL BW BH
Order #
.625”
.315
2.00 1.03 1.75 1.12 2.28
7600-1
.750”
.315
2.00 1.03 1.75 1.12 2.28
7600-2
12mm
.315
2.00 1.03 1.75 1.12 2.28
7600-12
16mm
.315
2.00 1.03 1.75 1.12 2.28
7600-16
Straight Shank (SD)
TB TL
(MAX)
BD BL BW BH
Order #
.625”
.500 2.00 1.19 2.16 1.25 2.56
1760-1
.750”
.500 2.00 1.19 2.16 1.25 2.56
1760-2
16mm
.500 2.00 1.19 2.16 1.25 2.56
1760-16
Morse Taper (MT)
TB TL
(MAX)
BD BL BW BH
Order #
#1
.315
2.00 1.03 1.75 1.12 2.28
7600-51
#2
.315
2.00 1.03 1.75 1.12 2.28
7600-52
Morse Taper (MT)
TB TL
(MAX)
BD BL BW BH
Order #
#1
.500 2.00 1.19 2.16 1.25 2.56
1760-51
#2
.500 2.00 1.19 2.16 1.25 2.56
1760-52
SMALL SWISS TYPE TOOL HOLDER
LARGE SWISS TYPE TOOL HOLDER
.
315” TOOL BORE
|
BROACHING CAPACITY .028-.375”
.
500” TOOL BORE
|
BROACHING CAPACITY .050-.500”
INTERNAL ADJUSTABLE TOOL HOLDER BENEFITS:
• Adjustable to compensate for machine alignment/variations
• Flexibility for use of different overall length broaches
• High-durability three piece bearing configuration
• Conveniently offered in different shank sizes
• Industry-best broaching capacity
• Eliminates secondary operations
• Capable of producing small external forms
