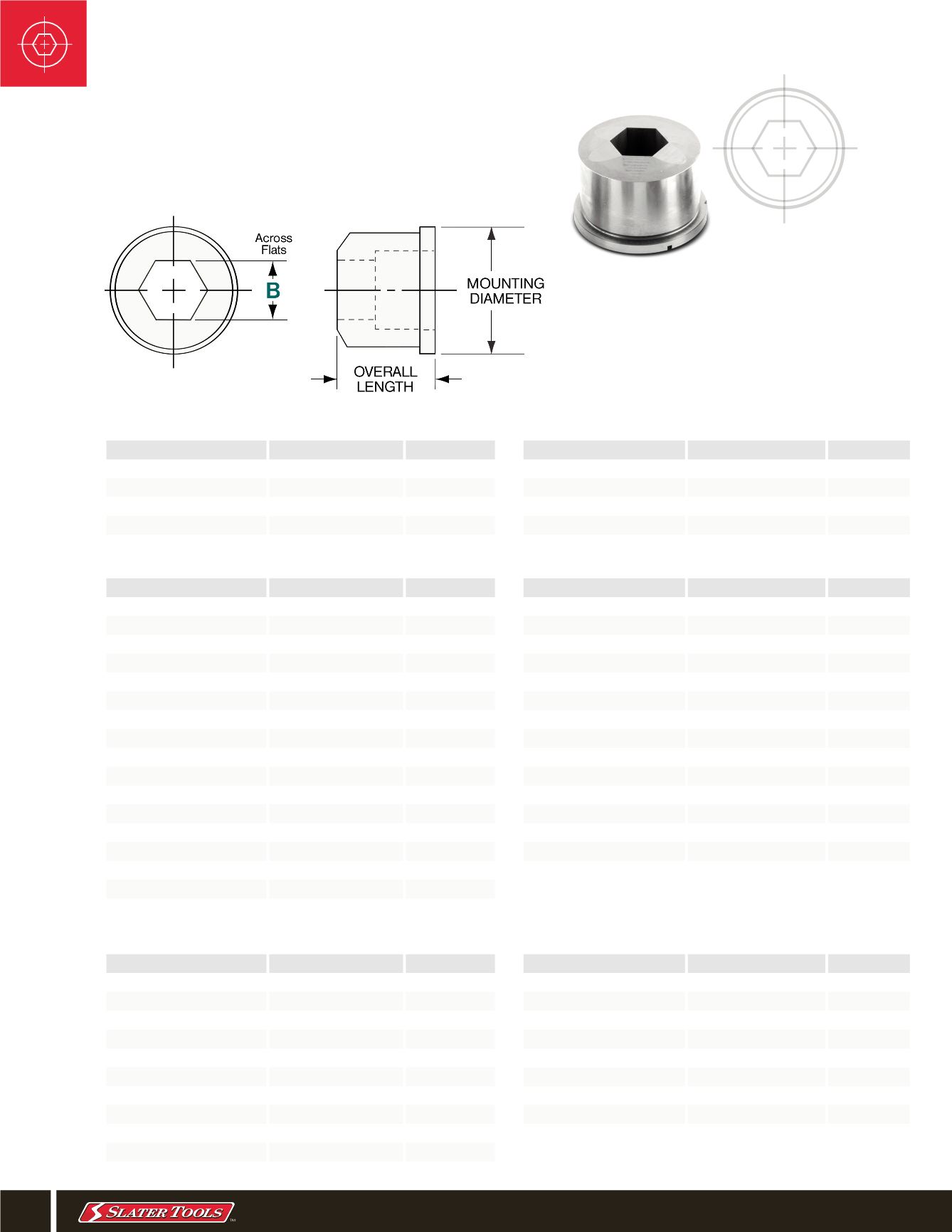

EXTERNAL HEXAGON BROACHES
External Hexagon Rotary Broaches are offered in standard
sizes and can also be made per your print. Various
materials, coatings and re-sharpening are also offered
on any of Slater Tools’ External Rotary Broaches.
For all
available broach options, see page 21.
.9448” MOUNTING DIAMETER
|
.75” OVERALL LENGTH
1.5748” MOUNTING DIAMETER
|
1.00” OVERALL LENGTH
Standard Size
(in)
B
Order #
1/4”
.244
1661-244
9/32” .275
1661-275
5/16” .305
1661-305
11/32” .336
1661-336
Standard Size
(in)
B
Order #
1/4”
.244
1462-244
9/32” .275
1462-275
5/16” .305
1462-305
11/32” .336
1462-336
3/8”
.367
1462-367
13/32” .397
1462-397
7/16” .428
1462-428
15/32” .463
1462-463
1/2”
.489
1462-489
17/32” .520
1462-520
9/16” .551
1462-551
19/32” .582
1462-582
5/8”
.612
1462-612
21/32” .643
1462-643
11/16” .674
1462-674
23/32” .705
1462-705
3/4”
.736
1462-736
Standard Size
(in)
B
Order #
11/16” .674
1463-674
23/32” .705
1463-705
3/4”
.736
1463-736
25/32” .767
1463-767
13/16” .798
1463-798
27/32” .829
1463-829
7/8”
.860
1463-860
29/32” .891
1463-891
15/16” .922
1463-922
31/32” .952
1463-952
1”
.982
1463-982
Metric Size
(mm)
B
Order #
6.00mm .228
1661-228
7.00mm .267
1661-267
8.00mm .306
1661-306
9.00mm .346
1661-346
Metric Size
(mm)
B
Order #
6.00mm .228
1462-228
7.00mm .267
1462-267
8.00mm .306
1462-306
9.00mm .346
1462-346
10.00mm .385
1462-385
11.00mm .424
1462-424
12.00mm .462
1462-462
13.00mm .501
1462-501
14.00mm .540
1462-540
15.00mm .580
1462-580
16.00mm .619
1462-619
17.00mm .659
1462-659
18.00mm .698
1462-698
19.00mm .737
1462-737
Metric Size
(mm)
B
Order #
18.00mm .698
1463-698
19.00mm .737
1463-737
20.00mm .775
1463-775
21.00mm .814
1463-814
22.00mm .853
1463-853
23.00mm .893
1463-893
24.00mm .932
1463-932
25.00mm .970
1463-970
26.00mm 1.009
1463-1.009
HEXAGON BROACHES
EXTERNAL
2.3125” MOUNTING DIAMETER
|
1.25” OVERALL LENGTH
•
