Straight Shank (SD)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
1.00”
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-1
1.25”
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-2
1.50”
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-3
1.75”
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-4
2.00”
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-5
Morse Taper (MT)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
#3
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-53
#4
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-54
#5
2.3125 1.75 3.12 3.95 2.62 4.38 1.25 .75
7773-55
Straight Shank (SD)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
1.00”
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-1
1.25”
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-2
1.50”
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-3
1.75”
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-4
2.00”
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-5
Morse Taper (MT)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
#3
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-53
#4
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-54
#5
1.5748 1.50 2.62 3.90 2.62 4.38 1.25 .75
7770-55

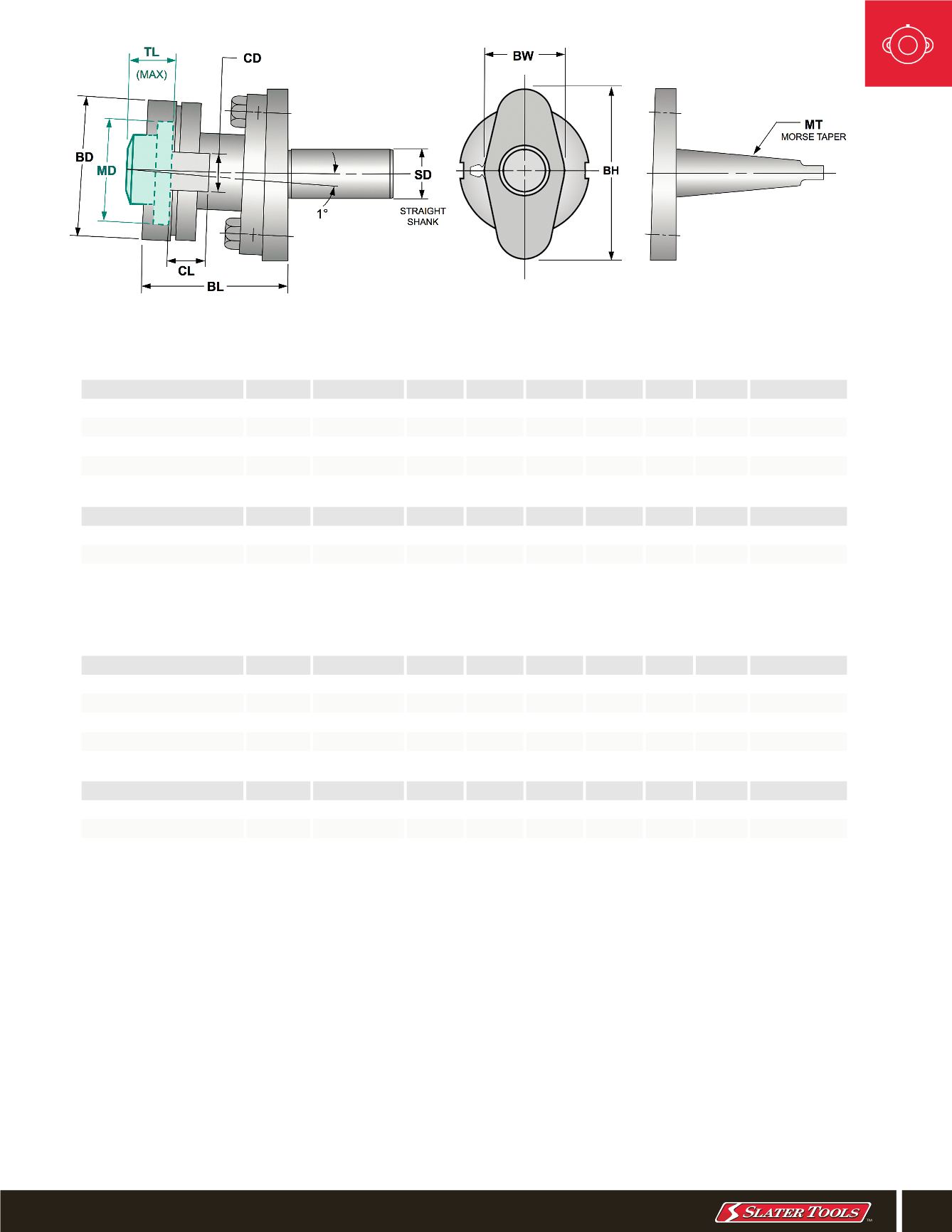

ADJUSTABLE ROTARY BROACH TOOL HOLDERS
31
EXTERNAL
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
EXTRA LARGE FORM TOOL HOLDER
2.3125” MOUNTING DIAMETER
|
BROACHING CAPACITY .875-1.80”
HEAVY DUTY TOOL HOLDER
1.5748” MOUNTING DIAMETER
|
BROACHING CAPACITY .625-1.00”
NOTE: All dimensions in inches unless otherwise specified
† Broaching capacities are application specific
EXTERNAL ADJUSTABLE TOOL HOLDER BENEFITS:
• Adjustable to compensate for machine alignment/variations
• Flexibility for use of different overall length broaches
• High-durability three piece bearing configuration
• Conveniently offered in different shank sizes
• Eliminates secondary operations
• Industry-best broaching capacity
