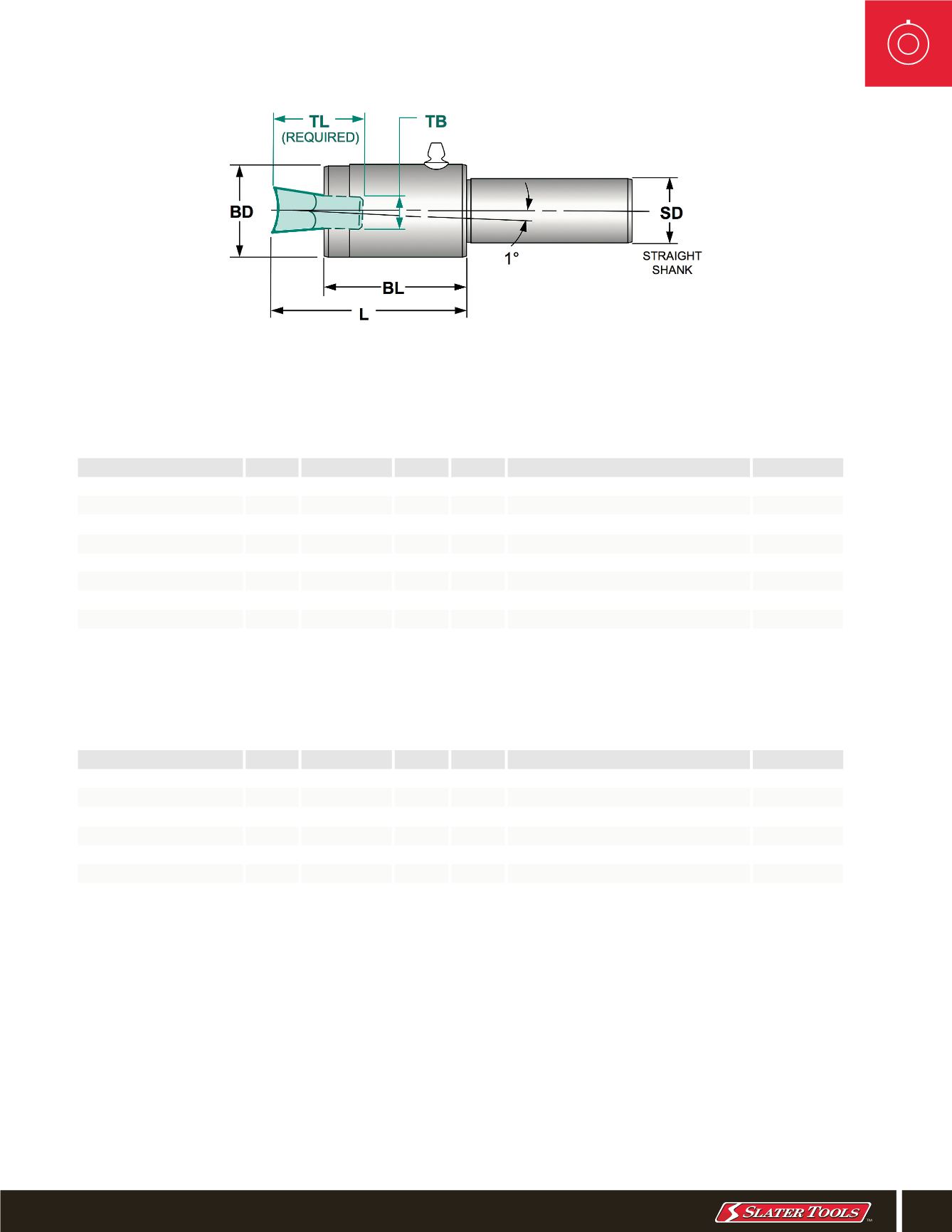

Straight Shank (SD)
TB TL
(REQ)
BD BL L
Order #
.625”
.500 1.75 1.24 2.14 3.19
0700-1
.750”
.500 1.75 1.24 2.14 3.19
0700-2
1.00”
.500 1.75 1.24 2.14 3.19
0700-3
12mm
.500 1.75 1.24 2.14 3.19
0700-12
16mm
.500 1.75 1.24 2.14 3.19
0700-16
20mm
.500 1.75 1.24 2.14 3.19
0700-20
22mm
.500 1.75 1.24 2.14 3.19
0700-22
25mm
.500 1.75 1.24 2.14 3.19
0700-25
ADJUSTMENT-FREE ROTARY BROACH TOOL HOLDERS
27
LARGE SWISS TYPE TOOL HOLDER
.
500” TOOL BORE
|
BROACHING CAPACITY .050-.500”
|
2.00” LONG STRAIGHT SHANK
INTERNAL
STANDARD TYPE TOOL HOLDER
.500” TOOL BORE
|
BROACHING CAPACITY .050-.750”
|
3.00” LONG STRAIGHT SHANK
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
Straight Shank (SD)
TB TL
(REQ)
BD BL L
Order #
.750”
.500 1.75 1.50 2.33 3.37
3700-1
1.00”
.500 1.75 1.50 2.33 3.37
3700-2
1.25”
.500 1.75 1.50 2.33 3.37
3700-3
1.50”
.500 1.75 1.50 2.33 3.37
3700-4
25mm
.500 1.75 1.50 2.33 3.37
3700-25
32mm
.500 1.75 1.50 2.33 3.37
3700-32
NOTE: All dimensions in inches unless otherwise specified
† Broaching capacities are application specific
