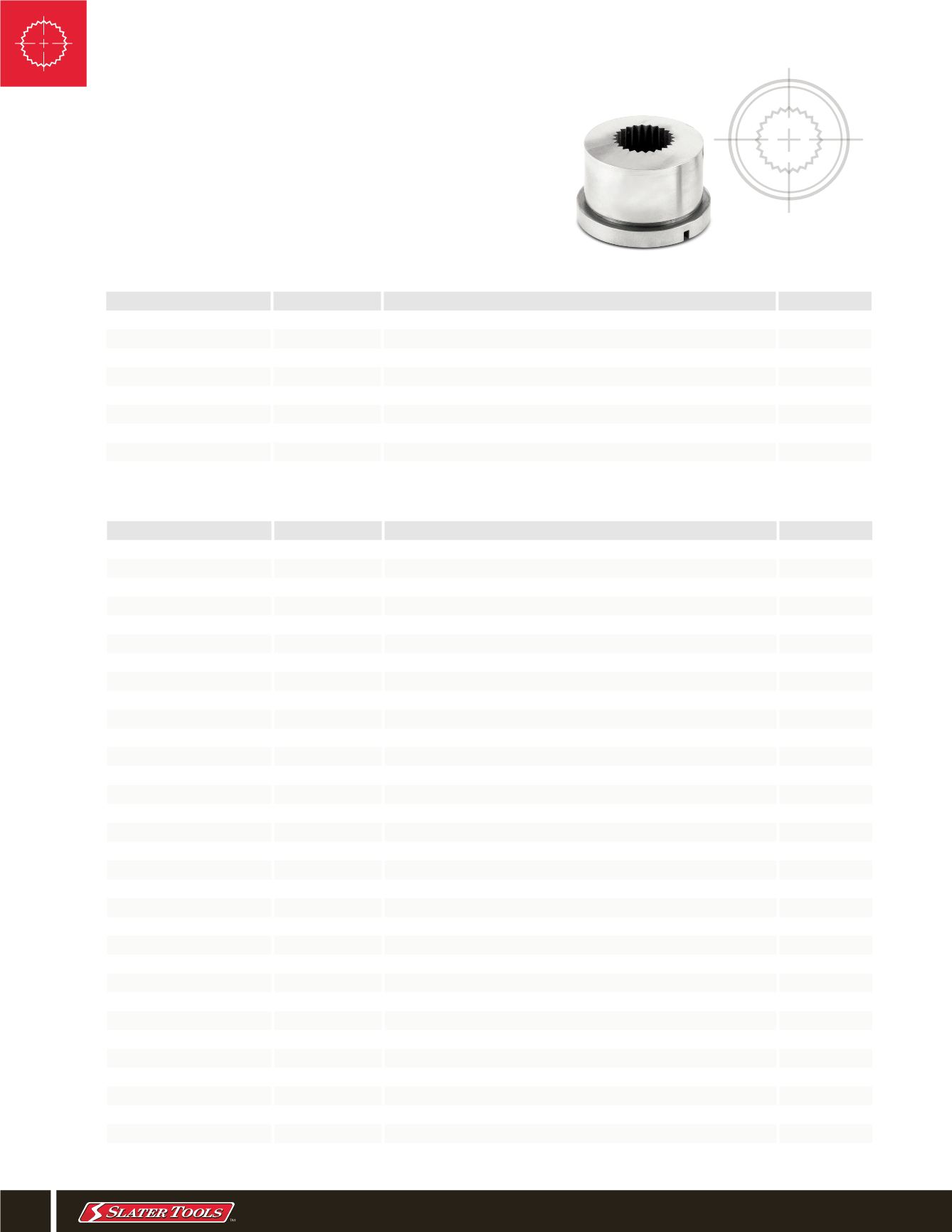

EXTERNAL SERRATION BROACHES
These precision ground External Serration Broaches are
designed to be used individually or as mating parts with
Slater Tools’ Internal Serration Broaches (see page 12).
When mating the internal with the external serration,
there will be a .0028” per side tooth clearance. Internal
and External Serration Rotary Broaches can be produced
with a variety of custom options.
20
Standard Size
(in)
# OF TEETH
B
Order #
5/16”
11
.3085
1831-3085
15
.3085
1851-3085
19
.3085
1871-3085
11/32”
12
.3400
1831-3400
16
.3400
1851-3400
21
.3400
1871-3400
3/8”
14
.3710
1831-3710
18
.3710
1851-3710
23
.3710
1871-3710
.9448” MOUNTING DIAMETER
|
1.00” OVERALL LENGTH
Standard Size
(in)
# OF TEETH
B
Order #
11/32”
12
.3400
1832-3400
16
.3400
1852-3400
21
.3400
1872-3400
3/8”
14
.3710
1832-3710
18
.3710
1852-3710
23
.3710
1872-3710
13/32”
15
.4020
1832-4020
19
.4020
1852-4020
24
.4020
1872-4020
7/16”
16
.4335
1832-4335
21
.4335
1852-4335
26
.4335
1872-4335
15/32”
17
.4650
1832-4650
22
.4650
1852-4650
28
.4650
1872-4650
1/2”
18
.4960
1832-4960
24
.4960
1852-4960
30
.4960
1872-4960
9/16”
20
.5585
1832-5585
27
.5585
1852-5585
34
.5585
1872-5585
5/8”
23
.6210
1832-6210
30
.6210
1852-6210
38
.6210
1872-6210
21/32”
24
.6520
1832-6520
31
.6520
1852-6520
39
.6520
1872-6520
11/16”
25
.6835
1832-6835
33
.6835
1852-6835
41
.6835
1872-6835
3/4”
27
.7460
1832-7460
36
.7460
1852-7460
45
.7460
1872-7460
1.5748” MOUNTING DIAMETER
|
1.50” OVERALL LENGTH
•
