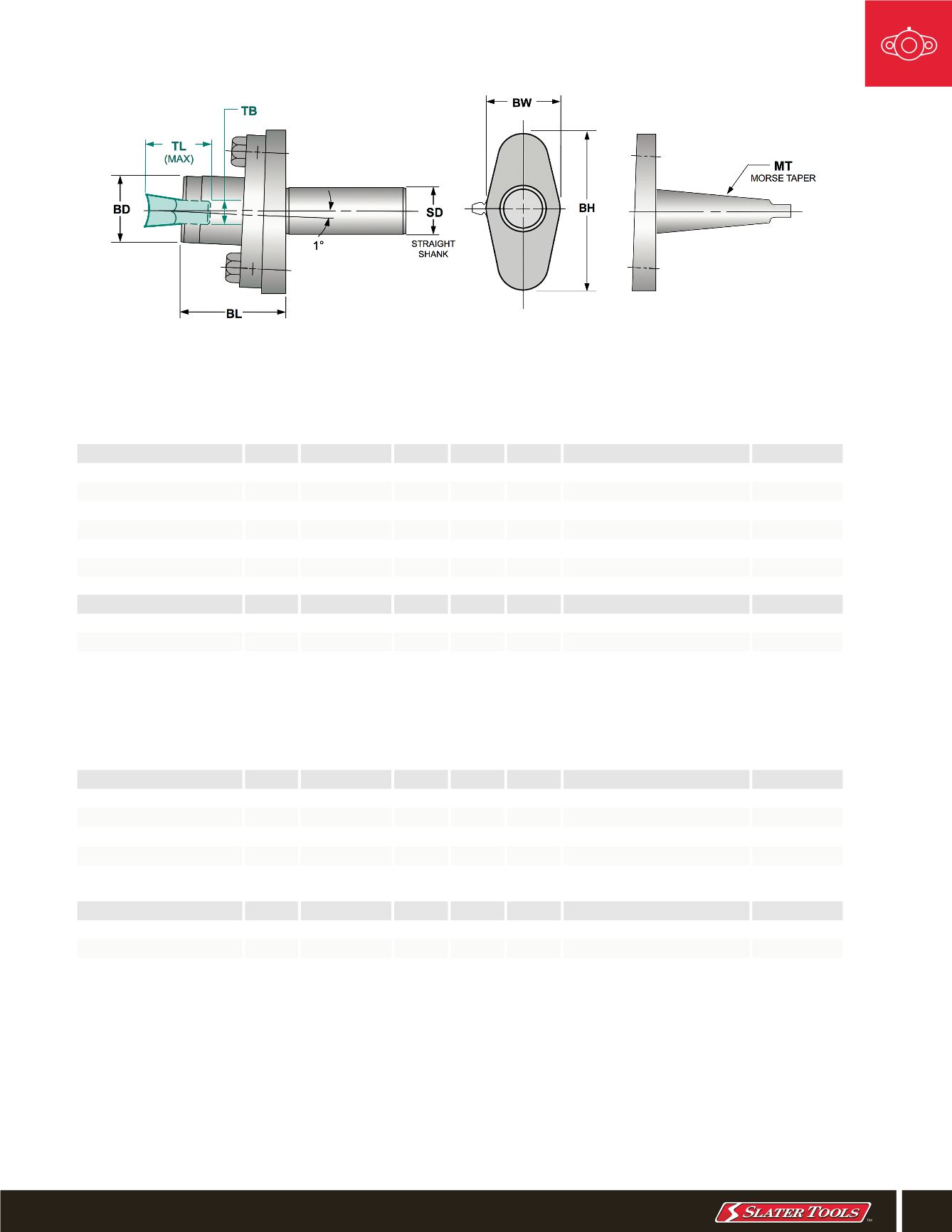

ADJUSTABLE ROTARY BROACH TOOL HOLDERS
29
INTERNAL
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
Straight Shank (SD)
TB TL
(MAX)
BD BL BW BH
Order #
.750”
.500 3.00 1.44 2.31 1.50 3.25
3760-1
1.00”
.500 3.00 1.44 2.31 1.50 3.25
3760-2
1.25”
.500 3.00 1.44 2.31 1.50 3.25
3760-3
1.50”
.500 3.00 1.44 2.31 1.50 3.25
3760-4
22mm
.500 3.00 1.44 2.31 1.50 3.25
3760-22
25mm
.500 3.00 1.44 2.31 1.50 3.25
3760-25
Straight Shank (SD)
TB TL
(MAX)
BD BL BW BH
Order #
1.00”
.750 3.88 2.62 3.22 2.62 4.38
7760-1
1.25”
.750 3.88 2.62 3.22 2.62 4.38
7760-2
1.50”
.750 3.88 2.62 3.22 2.62 4.38
7760-3
1.75”
.750 3.88 2.62 3.22 2.62 4.38
7760-4
2.00”
.750 3.88 2.62 3.22 2.62 4.38
7760-5
Morse Taper (MT)
TB TL
(MAX)
BD BL BW BH
Order #
#2
.500 3.00 1.44 2.31 1.50 3.25
3760-52
#3
.500 3.00 1.44 2.31 1.50 3.25
3760-53
#4
.500 3.00 1.44 2.31 1.50 3.25
3760-54
Morse Taper (MT)
TB TL
(MAX)
BD BL BW BH
Order #
#3
.750 3.88 2.62 3.22 2.62 4.38
7760-53
#4
.750 3.88 2.62 3.22 2.62 4.38
7760-54
#5
.750 3.88 2.62 3.22 2.62 4.38
7760-55
HEAVY DUTY TOOL HOLDER
STANDARD TYPE TOOL HOLDER
NOTE: All dimensions in inches unless otherwise specified
† Broaching capacities are application specific
.
750” TOOL BORE
|
BROACHING CAPACITY .625-2.00”
.
500” TOOL BORE
|
BROACHING CAPACITY .050-.750”
