30
Straight Shank (SD)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
.625”
.9448 1.00 1.62
2.16 1.12 2.28 .56 .31
7700-1
.750”
.9448 1.00 1.62
2.16 1.12 2.28 .56 .31
7700-2
12mm
.9448 1.00 1.62
2.16 1.12 2.28
.56
.31
7700-12
16mm
.9448 1.00 1.62
2.16 1.12 2.28 .56 .31
7700-16
Morse Taper (MT)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
#1
.9448 1.00 1.62
2.16 1.12 2.28 .56 .31
7700-51
#2
.9448 1.00 1.62
2.16 1.12 2.28 .56 .31
7700-52
Straight Shank (SD)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
.625”
.9448 1.00 1.62
2.47 1.25 2.56 .69 .50 1770-1
.750”
.9448 1.00 1.62
2.47 1.25 2.56 .69 .50 1770-2
16mm
.9448 1.00 1.62
2.47 1.25 2.56
.69
.50 1770-16
Morse Taper (MT)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
#1
.9448 1.00 1.62
2.47 1.25 2.56 .69 .50 1770-51
#2
.9448 1.00 1.62
2.47 1.25 2.56 .69 .50 1770-52
SWISS TYPE TOOL HOLDER
.9448” MOUNTING DIAMETER
|
BROACHING CAPACITY .125-.250”
.9448” MOUNTING DIAMETER
|
BROACHING CAPACITY .125-.375”
Rotary broaching has become a popular method
of producing external/OD forms. Most external
shapes can be produced up to 1.80 inches in
diameter using Slater Tools’ External Adjustable
Rotary Broach Tool Holders. These tool holders
can be used on any CNC lathe, mill, Swiss, screw,
machining center or other turning machine and
can be adjusted to compensate for variations in
machine alignment.

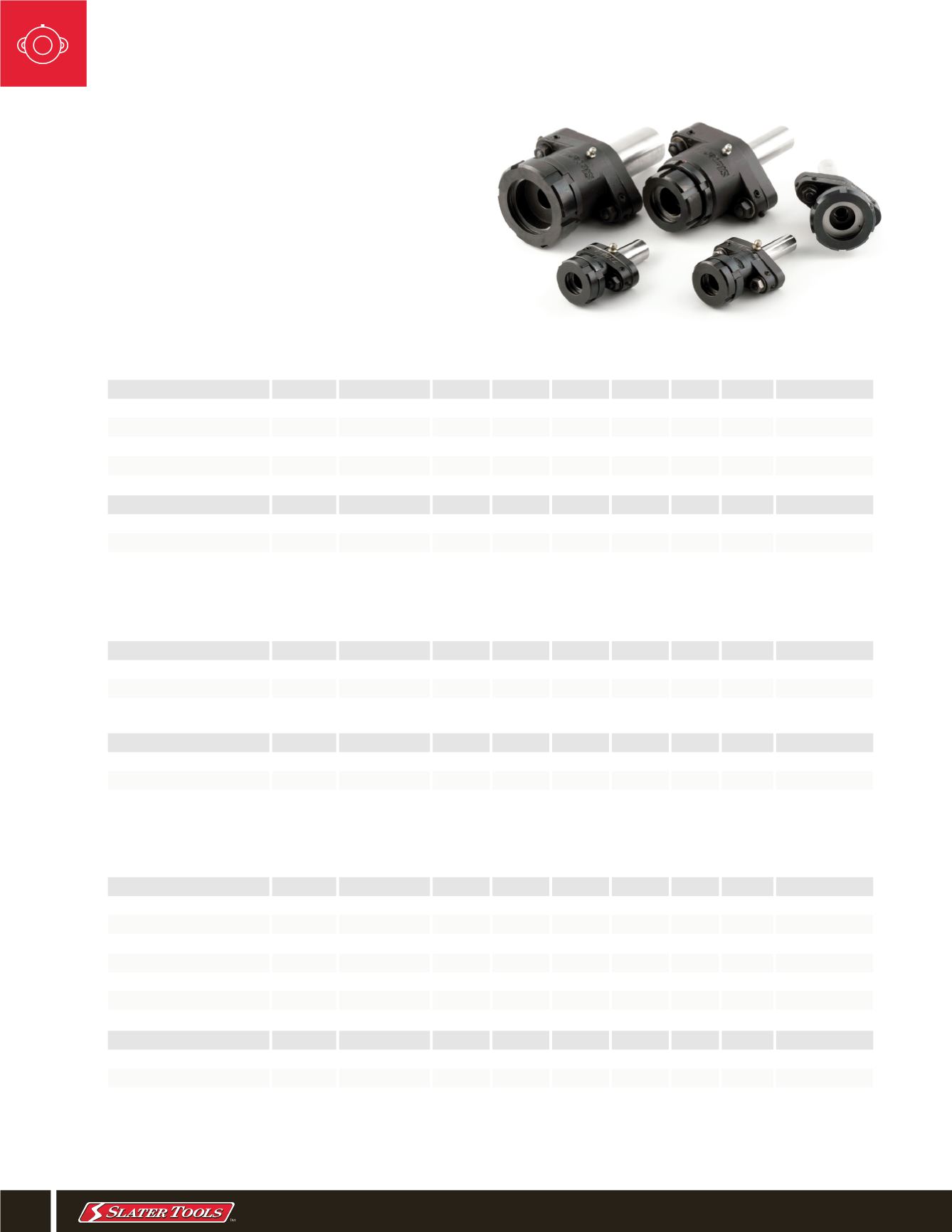

EXTERNAL ADJUSTABLE ROTARY BROACH TOOL HOLDERS
Straight Shank (SD)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
.750”
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-1
1.00”
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-2
1.25”
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-3
1.50”
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-4
22mm
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-22
25mm
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-25
Morse Taper (MT)
MD
TL
(MAX)
BD
BL
BW
BH
CL
CD Order #
#2
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-52
#3
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-53
#4
1.5748 1.50 2.25 2.69 1.50 3.25 .69 .50 3770-54
STANDARD TYPE TOOL HOLDER
1.5748” MOUNTING DIAMETER
|
BROACHING CAPACITY .250-.625”
LARGE SWISS TYPE TOOL HOLDER
•
EMAIL:
ADJUSTABLE ROTARY BROACH TOOL HOLDERS
EXTERNAL
