SAE Port Reference # To Produce Serrations for Port # # of Teeth
B
Order #
AS1300-02
PS10035-02
24
.411
513-02
AS1300-03
PS10035-03
26
.481
513-03
AS1300-04
PS10035-04
30
.527 513-04
AS1300-05
PS10035-05
36
.638 513-05
AS1300-06
PS10035-06
36
.713 513-06
AS1300-08
PS10035-08
40
.829 513-08
AS1300-10
PS10035-10
38
1.055 513-10
AS1300-12
PS10035-12
40
1.185 513-12
AS1300-14
PS10035-14
50
1.357 513-14
AS1300-16
PS10035-16
36
1.474 513-16
SAE Port Reference # To Produce Serrations for Port # # of Teeth
B
Order #
AS1300-02
PS10035-02
24
.411
713-02
AS1300-03
PS10035-03
26
.481
713-03
AS1300-04
PS10035-04
30
.527 713-04
AS1300-05
PS10035-05
36
.638 713-05
AS1300-06
PS10035-06
36
.713 713-06
AS1300-08
PS10035-08
40
.829 713-08
AS1300-10
PS10035-10
38
1.055 713-10
AS1300-12
PS10035-12
40
1.185 713-12
AS1300-14
PS10035-14
50
1.357 713-14
AS1300-16
PS10035-16
36
1.474 713-16
AS1300-20 PS10035-20
56
1.798 713-20
AS1300-24
PS10035-24
81
2.048 713-24

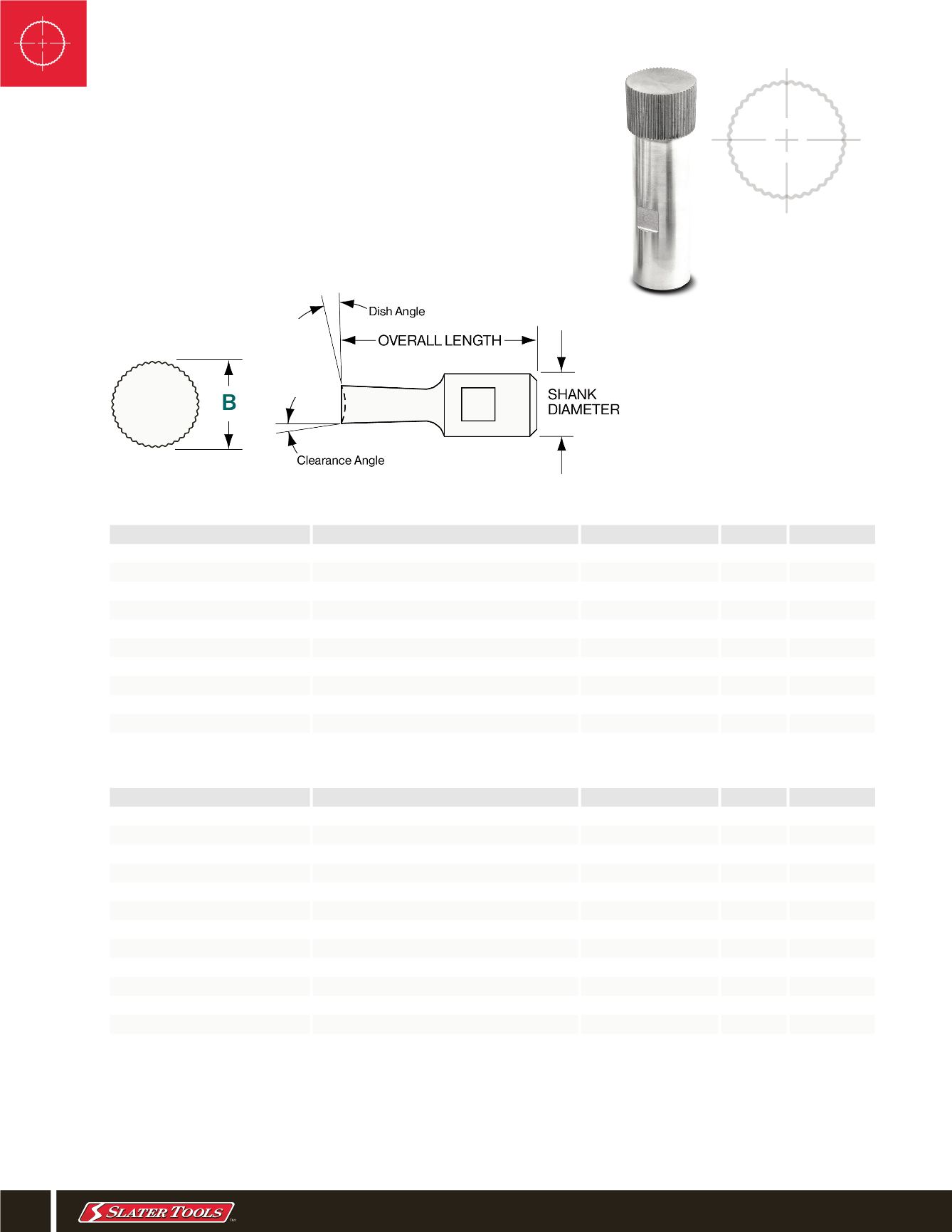

INTERNAL ROSAN-TYPE BROACHES
Slater Tools’ Rosan-type Broaches are designed to produce
serrations for SAE standard AS1300 ports (PS10035). Most
standard Rosan-type Rotary/Wobble Broach Tools are in
stock and available for immediate delivery. Rosan-type
Broaches can be produced in special sizes and custom
lengths. They can also be made in a variety of materials and
coatings. Vent holes, quantity discounts and re-sharpening
services are available.
For all available broach options,
see page 13.
.500” SHANK DIAMETER
|
1.75” OVERALL LENGTH
.750” SHANK DIAMETER
|
2.75” OVERALL LENGTH
ROSAN-TYPE BROACHES
INTERNAL
•
EMAIL:
NOTE: All dimensions in inches unless otherwise specified
