.750” SHANK DIAMETER
|
2.75” OVERALL LENGTH
.750” SHANK DIAMETER
|
3.75” OVERALL LENGTH

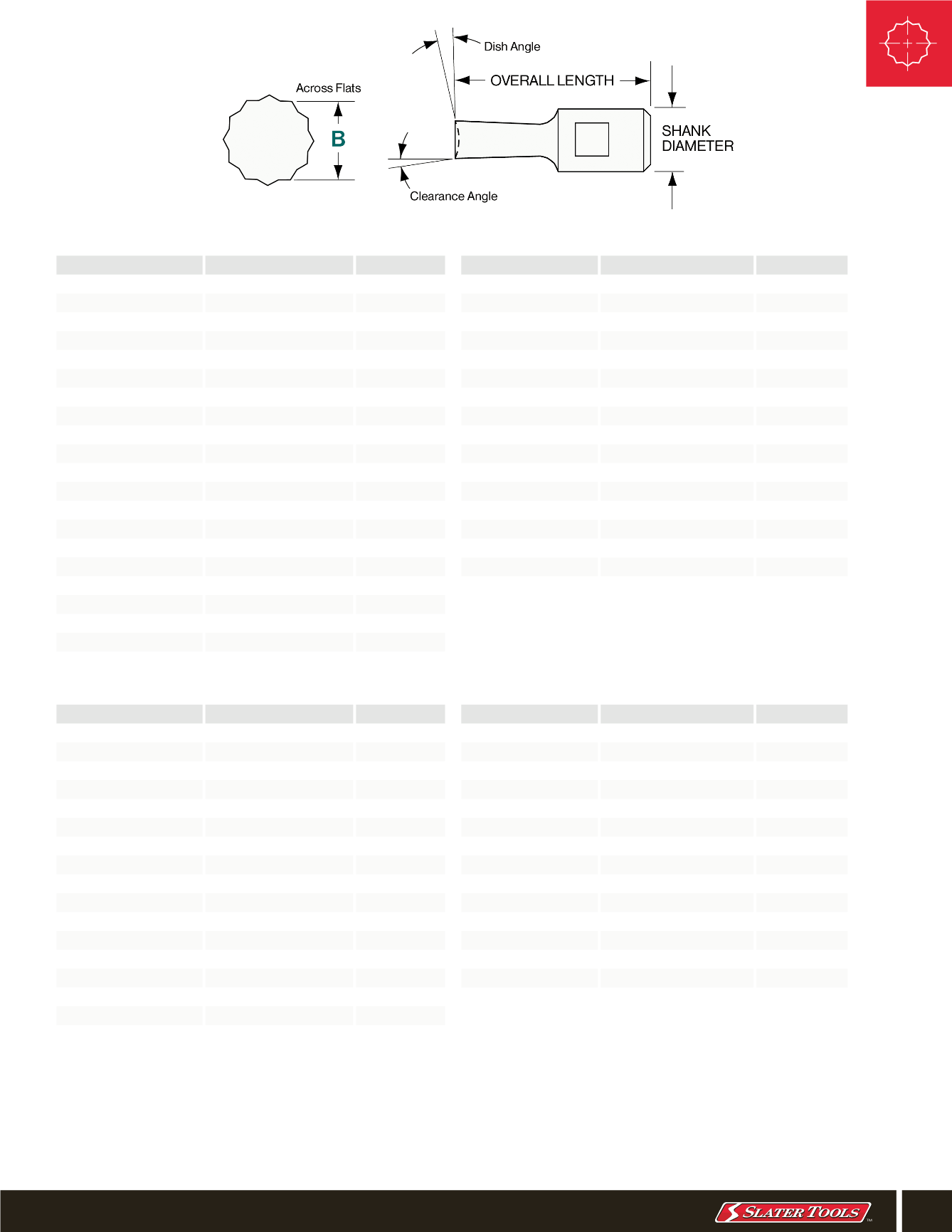

DOUBLE HEX BROACHES
INTERNAL
11
Standard Size
(in)
B
Order #
13/32” .410
702-410
7/16” .442
702-442
15/32” .473
702-473
1/2”
.505
702-505
17/32” .536
702-536
9/16” .568
702-568
19/32” .599
702-599
5/8”
.631
702-631
21/32” .662
702-662
11/16” .694
702-694
23/32” .725
702-725
3/4”
.757
702-757
25/32” .789
702-789
13/16” .821
702-821
27/32” .853
702-853
7/8”
.885
702-885
29/32” .919
702-919
15/16” .953
702-953
31/32” .986
702-986
1”
1.020
702-1.020
Standard Size
(in)
B
Order #
1/2”
.505
782-505
17/32” .536
782-536
9/16” .568
782-568
19/32” .599
782-599
5/8”
.631
782-631
21/32” .662
782-662
11/16” .694
782-694
23/32” .725
782-725
3/4”
.757
782-757
25/32” .789
782-789
13/16” .821
782-821
27/32” .853
782-853
7/8”
.885
782-885
29/32” .919
782-919
15/16” .953
782-953
31/32” .986
782-986
1”
1.020
782-1.020
Metric Size
(mm)
B
Order #
10.00mm .399
702-399
11.00mm
.437
702-437
12.00mm .478
702-478
13.00mm .517
702-517
14.00mm .557
702-557
15.00mm .597
702-597
16.00mm .636
702-636
17.00mm .678
702-678
18.00mm .715
702-715
19.00mm .758
702-758
20.00mm .795
702-795
21.00mm .836
702-836
22.00mm .879
702-879
23.00mm .916
702-916
24.00mm .957
702-957
25.00mm .994
702-994
26.00mm 1.034
702-1.034
Metric Size
(mm)
B
Order #
13.00mm .517
782-517
14.00mm .557
782-557
15.00mm .597
782-597
16.00mm .636
782-636
17.00mm .678
782-678
18.00mm .715
782-715
19.00mm .758
782-758
20.00mm .795
782-795
21.00mm .836
782-836
22.00mm .879
782-879
23.00mm .916
782-916
24.00mm .957
782-957
25.00mm .994
782-994
26.00mm 1.034
782-1.034
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
NOTE: All dimensions in inches unless otherwise specified
