.315” SHANK DIAMETER
|
1.25” OVERALL LENGTH
.500” SHANK DIAMETER
|
1.75” OVERALL LENGTH
.500” SHANK DIAMETER
|
2.25” OVERALL LENGTH
10
Standard Size
(in)
B
Order #
1/4”
.253
302-253
9/32” .284
302-284
5/16” .316
302-316
11/32” .347
302-347
3/8”
.379
302-379
13/32” .410
302-410
7/16” .442
302-442
15/32” .473
302-473
1/2”
.505
302-505
Standard Size
(in)
B
Order #
1/4”
.253
502-253
9/32” .284
502-284
5/16” .316
502-316
11/32” .347
502-347
3/8”
.379
502-379
13/32” .410
502-410
7/16” .442
502-442
15/32” .473
502-473
1/2”
.505
502-505
17/32” .536
502-536
9/16” .568
502-568
19/32” .599
502-599
5/8”
.631
502-631
21/32” .662
502-662
11/16” .694
502-694
23/32” .725
502-725
Standard Size
(in)
B
Order #
1/4”
.253
542-253
9/32” .284
542-284
5/16” .316
542-316
11/32” .347
542-347
3/8”
.379
542-379
13/32” .410
542-410
7/16” .442
542-442
15/32” .473
542-473
1/2”
.505
542-505
17/32” .536
542-536
9/16” .568
542-568
19/32” .599
542-599
5/8”
.631
542-631
21/32” .662
542-662
11/16” .694
542-694
23/32” .725
542-725
3/4”
.757
542-757
Metric Size
(mm)
B
Order #
6.00mm
.240
302-240
7.00mm
.279
302-279
8.00mm
.320
302-320
9.00mm
.358
302-358
10.00mm .399
302-399
11.00mm
.437
302-437
12.00mm .478
302-478
Metric Size
(mm)
B
Order #
6.00mm
.240
502-240
7.00mm
.279
502-279
8.00mm
.320
502-320
9.00mm
.358
502-358
10.00mm .399
502-399
11.00mm
.437
502-437
12.00mm .478
502-478
13.00mm .517
502-517
14.00mm .557
502-557
15.00mm .597
502-597
16.00mm .636
502-636
17.00mm .678
502-678
18.00mm .715
502-715
19.00mm .758
502-758
Metric Size
(mm)
B
Order #
6.00mm
.240
542-240
7.00mm
.279
542-279
8.00mm
.320
542-320
9.00mm
.358
542-358
10.00mm .399
542-399
11.00mm
.437
542-437
12.00mm .478
542-478
13.00mm .517
542-517
14.00mm .557
542-557
15.00mm .597
542-597
16.00mm .636
542-636
17.00mm .678
542-678
18.00mm .715
542-715
19.00mm .758
542-758

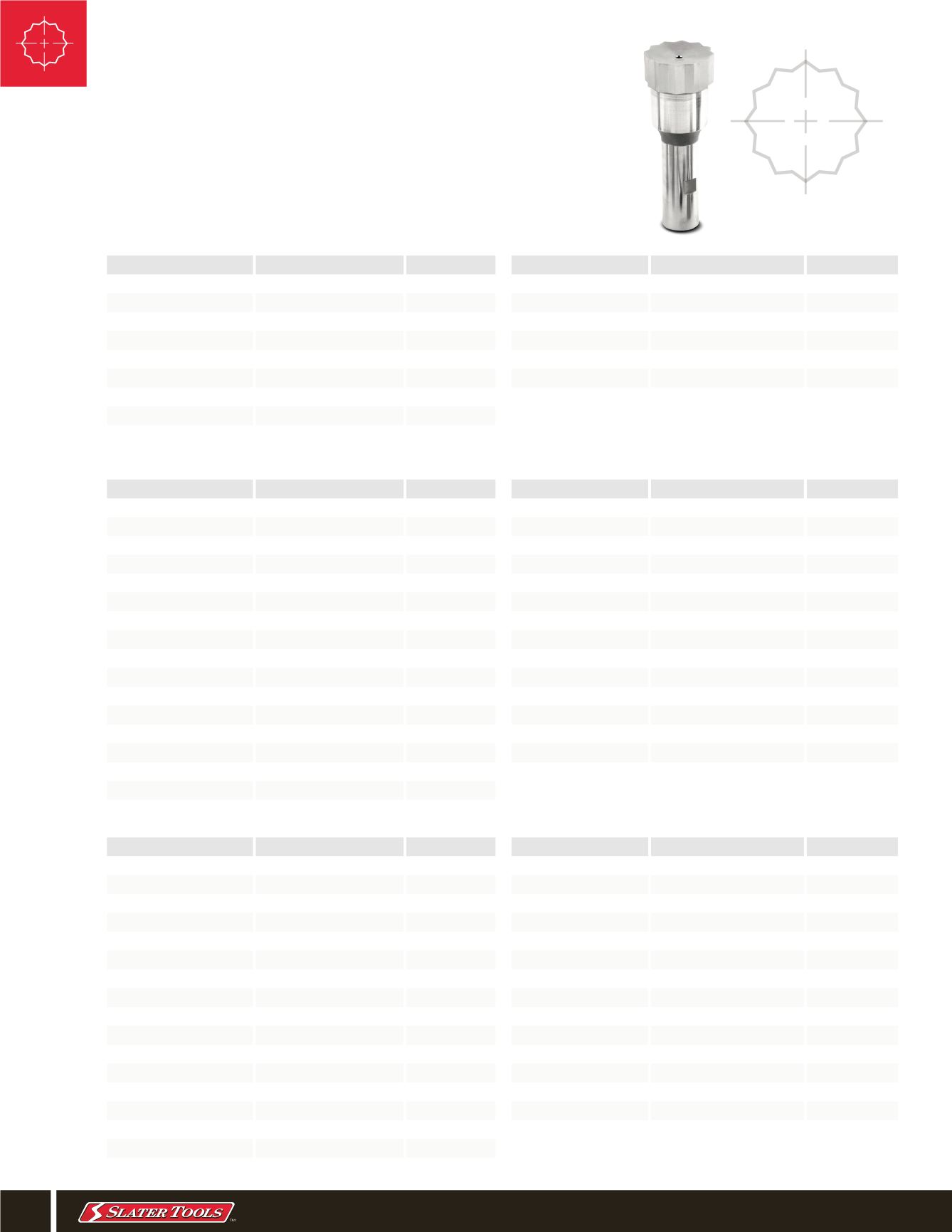

INTERNAL DOUBLE HEX BROACHES
Slater Tool’s Double Hex Rotary Broaches, also known as 12-point
Rotary Broaches, can be produced in special sizes, custom lengths,
and in a variety of materials and coatings. Pressure relief vent holes,
quantity discounts and re-sharpening are available for all broaches.
For all available broach options, see page 13.
