.315” SHANK DIAMETER
|
1.25” OVERALL LENGTH
|
FORM SIZE RANGE .028-.530”
.500” SHANK DIAMETER
|
1.75” OVERALL LENGTH
|
FORM SIZE RANGE .080-1.061”
8
Standard Size
(in)
B
D
Order #
1/16” .064
.81
304-064
5/64” .079
.81
304-079
3/32” .095
.75
304-095
7/64” .1 1 1
.75
304-1 1 1
1/8”
.127
.75
304-127
9/64” .142
.75
304-142
5/32” .159
.75
304-159
11/64” .174
.62
304-174
3/16” .190
.62
304-190
7/32” .222
.62
304-222
1/4”
.253
.62
304-253
9/32” .284
.62
304-284
5/16” .316
.62
304-316
11/32” .347
.62
304-347
3/8”
.379
.62
304-379
13/32” .410
.62
304-410
Standard Size
(in)
B
D
Order #
3/32” .095
1.00 504-095
7/64” .1 1 1
1.00 504-1 1 1
1/8”
.127
1.00 504-127
9/64” .142
1.00 504-142
5/32” .159
1.00 504-159
3/16” .190
.88 504-190
7/32” .222
.88 504-222
1/4”
.253
.88 504-253
9/32” .284
.75
504-284
5/16” .316
.75
504-316
11/32” .347
.75
504-347
3/8”
.379
.75
504-379
13/32” .410
.75
504-410
7/16” .442
.75
504-442
15/32” .473
.75
504-473
1/2”
.505
.75
504-505
17/32” .536
.75
504-536
9/16” .568
.75
504-568
19/32” .599
.75
504-599
5/8”
.631
.75
504-631
Metric Size
(mm)
B
D
Order #
1.25mm
.051 .81
304-051
1.50mm
.061 .81
304-061
2.00mm
.081 .81
304-081
2.50mm
.101 .75
304-101
3.00mm
.121 .75
304-121
4.00mm
.161 .75
304-161
5.00mm
.200 .62
304-200
6.00mm
.240 .62
304-240
7.00mm
.279 .62
304-279
8.00mm
.320 .62
304-320
9.00mm
.358 .62
304-358
10.00mm .399 .62
304-399
Metric Size
(mm)
B
D
Order #
2.00mm
.081 1.00 504-081
2.50mm
.101 1.00 504-101
3.00mm
.121 1.00 504-121
4.00mm
.161 1.00 504-161
5.00mm
.200 .88
504-200
6.00mm
.240 .88
504-240
7.00mm
.279 .75
504-279
8.00mm
.320 .75
504-320
9.00mm
.358 .75
504-358
10.00mm .399 .75
504-399
11.00mm
.437 .75
504-437
12.00mm .478 .75
504-478
13.00mm .517 .75
504-517
14.00mm .557 .75
504-557
15.00mm .597 .75
504-597

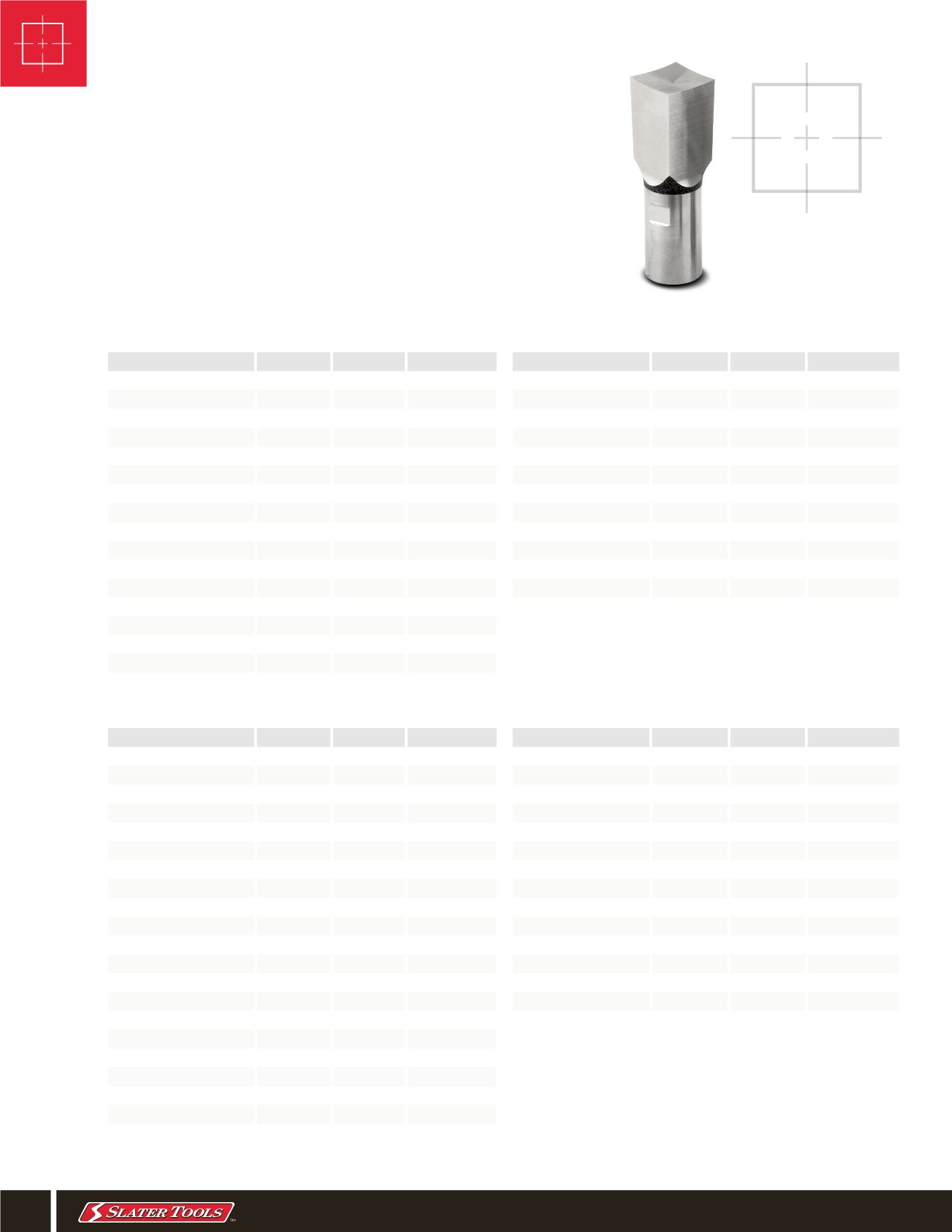

INTERNAL SQUARE BROACHES
Slater Tools offers a large inventory of Square Rotary Broaches.
The below listed sizes are available for immediate delivery in a
variety of materials and coatings. Additional popular sizes are
also available from stock. Slater Tools can make any custom
size square in only 1-2 days. Across-the-flats dimensions
conform to IFI and ANSI/ASME standards for maximum tool life.
We also offer pressure relief vent holes, quantity discounts and
re-sharpening services.
•
