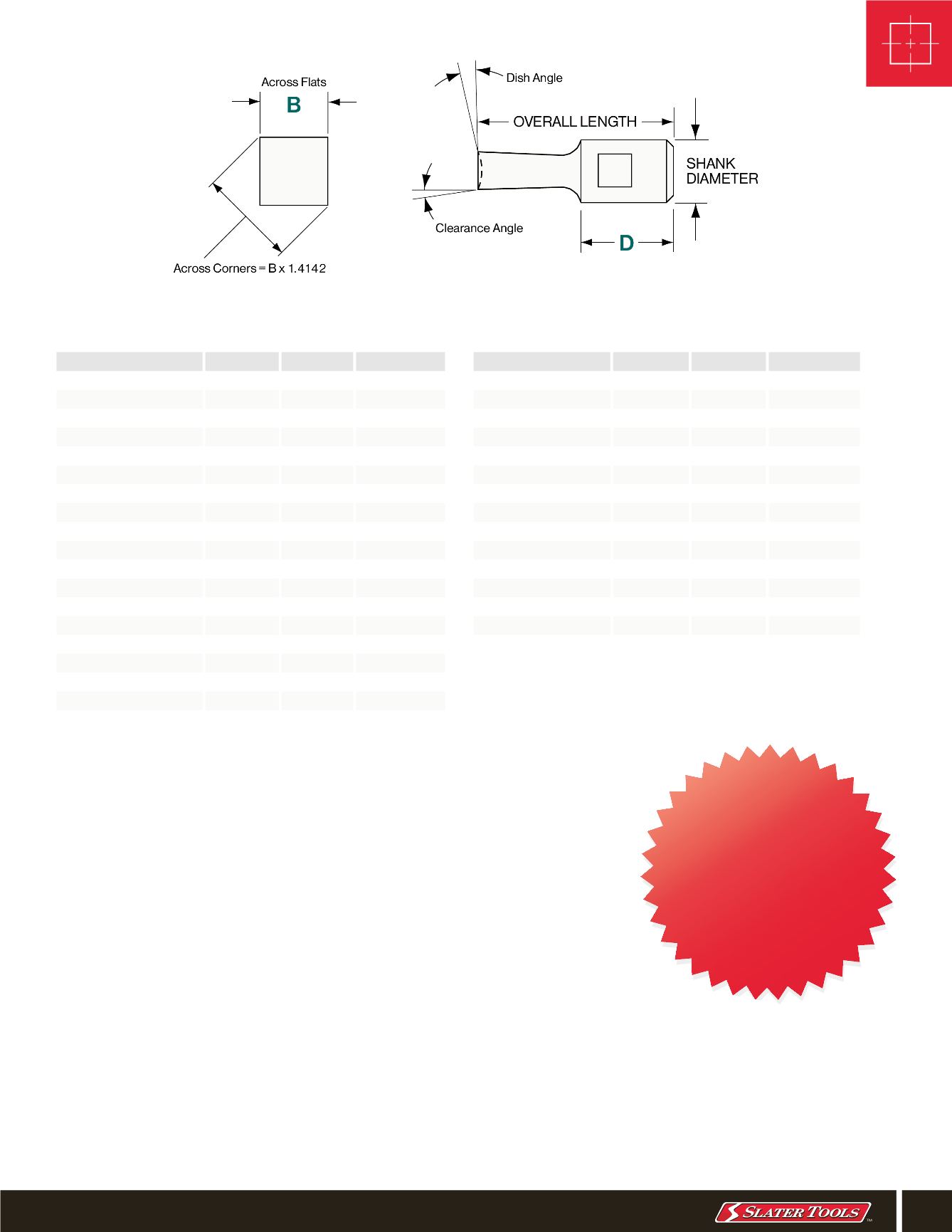

.750” SHANK DIAMETER
|
2.75” OVERALL LENGTH
|
FORM SIZE RANGE .180-1.675”
SQUARE BROACHES
INTERNAL
9
Standard Size
(in)
B
D
Order #
1/4”
.253
1.62 704-253
9/32” .284
1.62 704-284
5/16” .316
1.62 704-316
11/32” .347
1.62 704-347
3/8”
.379
1.62 704-379
13/32” .410
1.50 704-410
7/16” .442
1.50 704-442
15/32” .473
1.50 704-473
1/2”
.505
1.50 704-505
17/32” .536
1.50 704-536
9/16” .568
1.50 704-568
19/32” .599
1.31
704-599
5/8”
.631
1.31
704-631
21/32” .662
1.31
704-662
11/16” .694
1.31
704-694
23/32” .725
1.31
704-725
3/4”
.757
1.31
704-757
25/32” .788
1.31
704-788
13/16” .819
1.31
704-819
Metric Size
(mm)
B
D
Order #
6.00mm
.240 1.62
704-240
7.00mm
.279 1.62
704-279
8.00mm
.320 1.62
704-320
9.00mm
.358 1.62
704-358
10.00mm .399 1.50 704-399
11.00mm
.437 1.50 704-437
12.00mm .478 1.50 704-478
13.00mm .517 1.50 704-517
14.00mm .557 1.50 704-557
15.00mm .597 1.31
704-597
16.00mm .636 1.31
704-636
17.00mm .678 1.31
704-678
18.00mm .715 1.31
704-715
19.00mm .758 1.31
704-758
20.00mm .795 1.31
704-795
AVAILABLE INTERNAL BROACH OPTIONS:
• Coatings: TiN, TiCN, TiAlN
• Materials: M2, PM4, T15 High Speed Tool Steels
• Different overall lengths (including 28mm)
• Custom cut lengths
• Custom across-the-flat dimensions: .028-1.675” (0.70-42.5mm)
• MICRO forms
• Corner radius
• Spun ground diameter on broach corners
• Single or double vent holes
• Flat on shank can be aligned with flat on form (for holding orientation)
• Re-sharpening
• Quantity discounts at 5, 10, 30, 50, 100, 150, 200 pieces
Slater Tools
can make any
custom size
square in only
1-2 days
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
NOTE: All dimensions in inches unless otherwise specified
