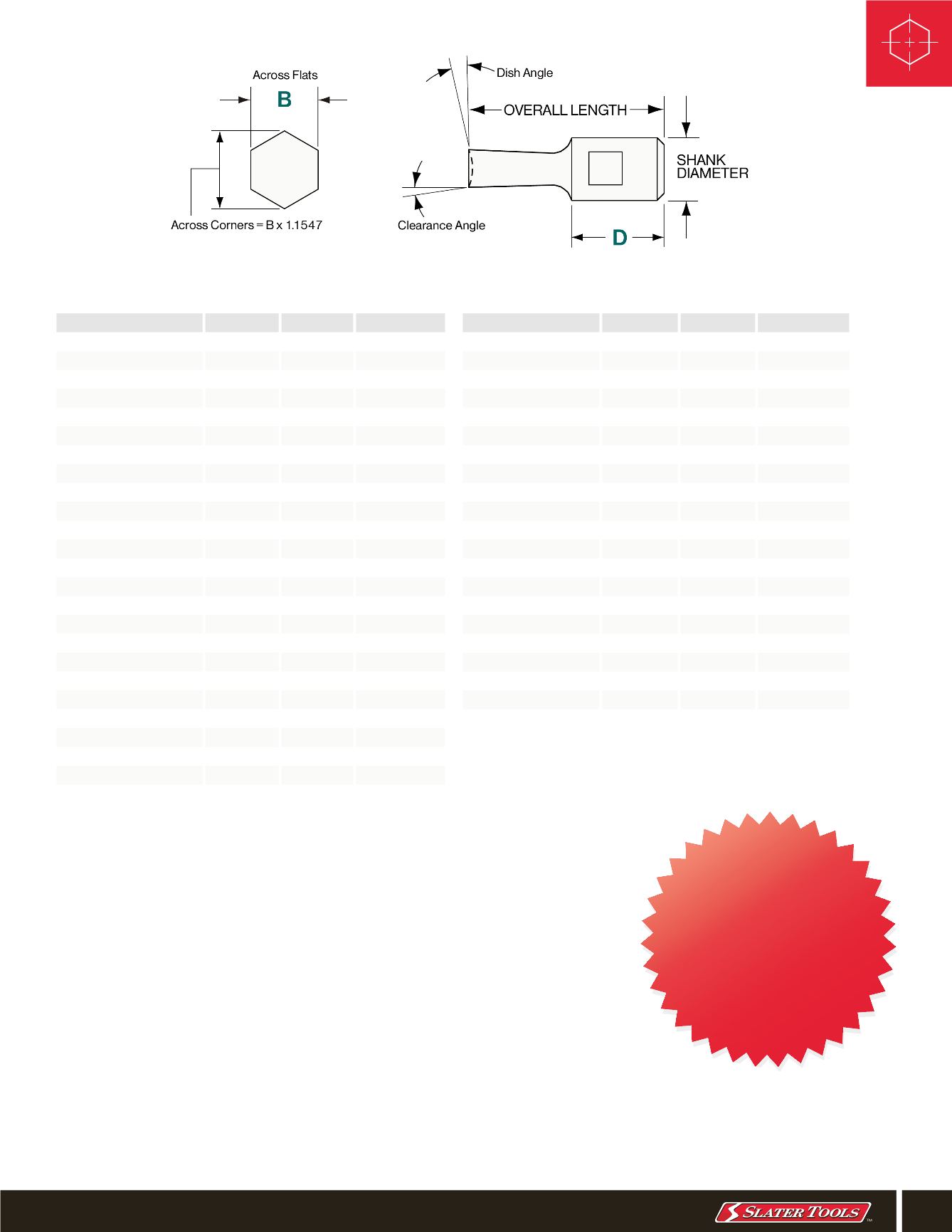

.750” SHANK DIAMETER
|
2.75” OVERALL LENGTH
|
FORM SIZE RANGE .180-2.050”
HEXAGON BROACHES
INTERNAL
7
Standard Size
(in)
B
D
Order #
1/4”
.253
1.62 706-253
9/32” .284
1.62 706-284
5/16” .316
1.62 706-316
11/32” .347
1.62 706-347
3/8”
.379
1.62 706-379
13/32” .410
1.50 706-410
7/16” .442
1.50 706-442
15/32” .473
1.50 706-473
1/2”
.505
1.50 706-505
17/32” .536
1.50 706-536
9/16” .568
1.50 706-568
19/32” .599
1.31
706-599
5/8”
.631
1.31
706-631
21/32” .662
1.31
706-662
11/16” .694
1.31
706-694
23/32” .725
1.31
706-725
3/4”
.757
1.31
706-757
25/32” .789
1.31
706-789
13/16” .821
1.31
706-821
27/32” .853
1.31
706-853
7/8”
.885
1.31
706-885
29/32” .919
1.31
706-919
15/16” .953
1.31
706-953
31/32” .986
1.31
706-986
1”
1.020
1.31
706-1.020
Metric Size
(mm)
B
D
Order #
6.00mm
.240 1.62
706-240
7.00mm
.279 1.62
706-279
8.00mm
.320 1.62
706-320
9.00mm
.358 1.62
706-358
10.00mm .399 1.50 706-399
11.00mm
.437 1.50 706-437
12.00mm .478 1.50 706-478
13.00mm .517 1.50 706-517
14.00mm .557 1.50 706-557
15.00mm .597 1.31
706-597
16.00mm .636 1.31
706-636
17.00mm .678 1.31
706-678
18.00mm .715 1.31
706-715
19.00mm .758 1.31
706-758
20.00mm .795 1.31
706-795
21.00mm .836 1.31
706-836
22.00mm .879 1.31
706-879
23.00mm .916 1.31
706-916
24.00mm .957 1.31
706-957
25.00mm .994 1.31
706-994
26.00mm 1.034 1.31
706-1.034
AVAILABLE INTERNAL BROACH OPTIONS:
• Coatings: TiN, TiCN, TiAlN
• Materials: M2, PM4, T15 High Speed Tool Steels
• Different overall lengths (including 28mm)
• Custom cut lengths
• Custom across-the-flat dimensions: .028-2.050” (0.70-52mm)
• MICRO forms
• Corner radius
• Spun ground diameter on broach corners
• Single or double vent holes
• Flat on shank can be aligned with flat on form (for holding orientation)
• Re-sharpening
• Quantity discounts at 5, 10, 30, 50, 100, 150, 200 pieces
Slater Tools
can make any
custom size
hex in only
1-2 days
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
NOTE: All dimensions in inches unless otherwise specified
