Skiving Dovetail Tool Holder
Skiving tool holders from Slater Tools are for single & multiple spindle automatics and turret lathes. You can now make your toughest cuts within seconds. Obtain exceptionally smooth finishes and quicker tool resharpening with easy tool removal. Slater Tools' Skiving Dovetail Tool Holders are manufactured to have what it takes to uphold performance.
Call: 586-465-5000 / Email: direct@slatertools.com
FOR UNIVERSAL MACHINE USAGE (refer to individual machines for adaptor riser blocks)

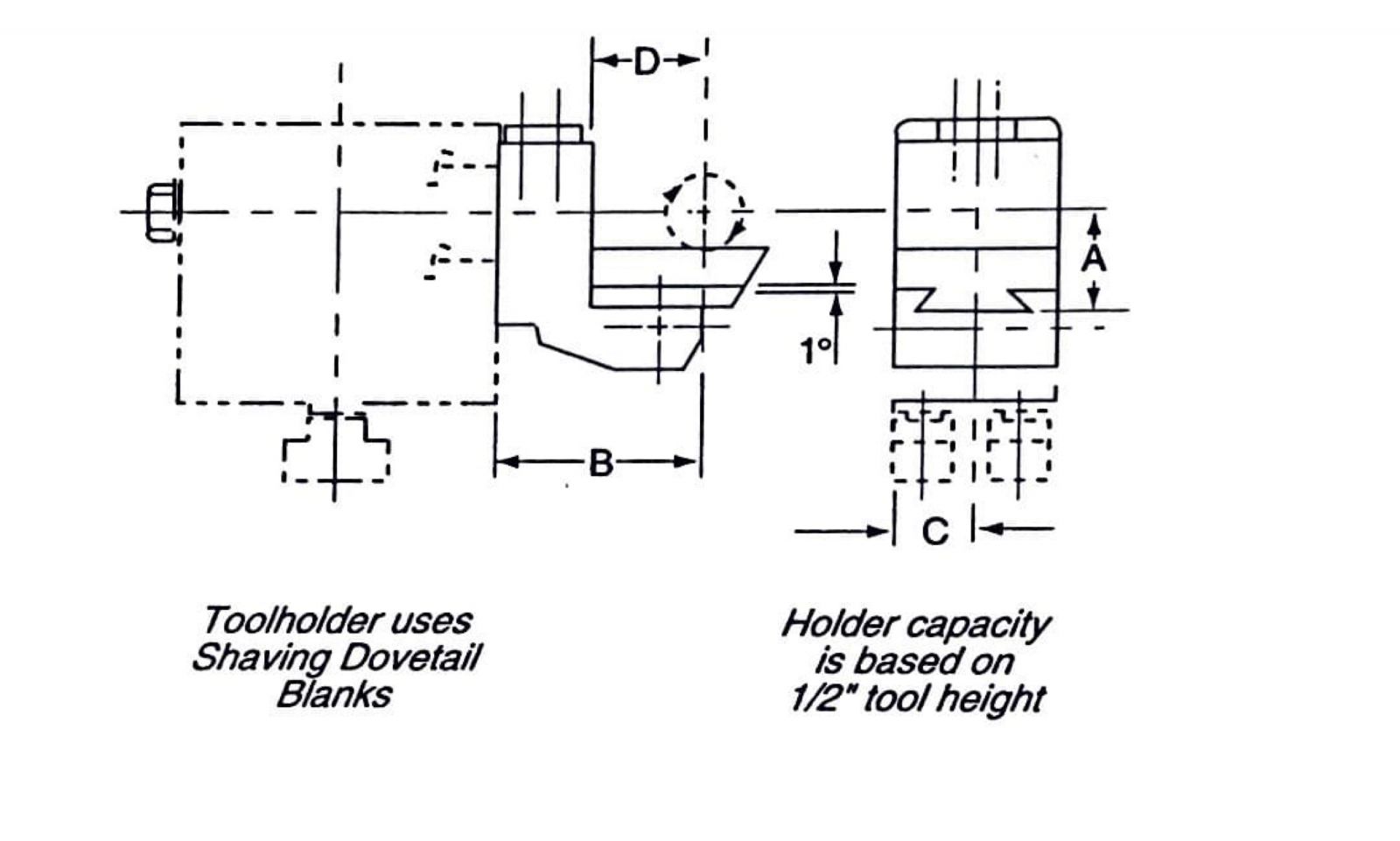

| Dovetail Size | Holder Capacity | A min | A max | B | C | D | Part # |
|---|---|---|---|---|---|---|---|
| 5/8 | 3/4 | 3/8 | 7/8 | 1-7/8 | 3/4 | 1 | SDH-0110 |
| 1 | 1-1/2 | 1/2 | 1-1/4 | 2-5/8 | 1 | 1-1/2 | SDH-0120 |
| 1-1/4 | 2-1/4 | 3/4 | 1-5/8 | 3-1/4 | 1 3/16 | 1-13/16 | SDH-0130 |
| 1-1/2 | 3 | 1 | 2 | 3-3/4 | 1 5/16 | 2-1/8 | SDH-0140 |
FOR CONOMATIC MACHINES
| Dovetail Size | Holder Capacity | A min | A max | C | D | Part # |
|---|---|---|---|---|---|---|
| 1 | 1-1/2 | 1/2 | 1-1/4 | 1-1/16 | 1-1/2 | SDH-3320 |
| 1-1/4 | 2-1/4 | 1 | 1-5/8 | 1-3/16 | 1-13/16 | SDH-3330 |
| 1-1/2 | 3 | 1 | 2 | 1-5/16 | 2-1/8 | SDH-3340 |
SKIVING TOOLHOLDER USAGE
