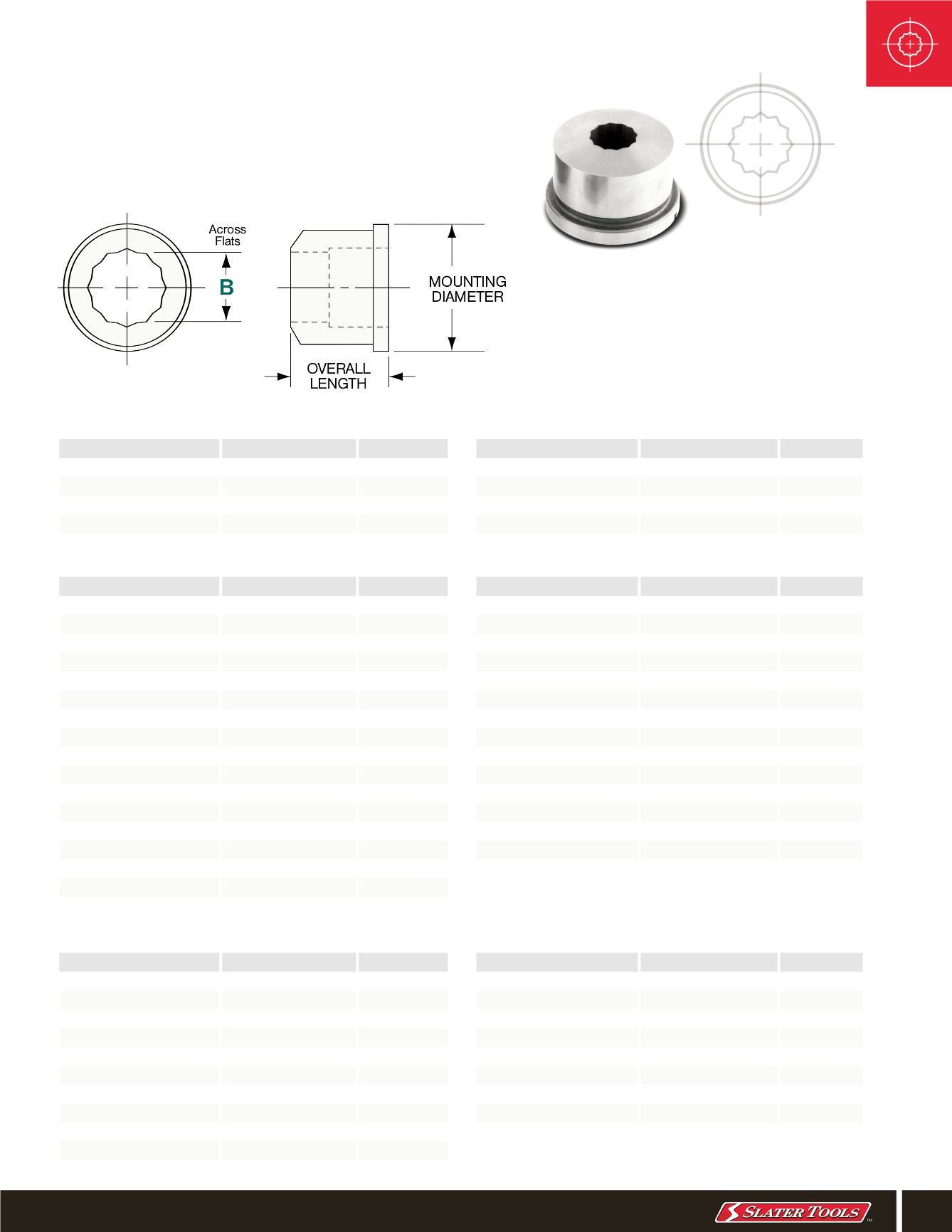

EXTERNAL DOUBLE HEX BROACHES
External Double Hexagon Rotary Broaches, commonly known
as 12-point Broaches, are offered in standard sizes or custom
made per your print. Various materials, coatings and re-
sharpening are available on any of Slater Tools’ External Rotary
Broaches.
For all available broach options, see page 21.
DOUBLE HEX BROACHES
EXTERNAL
.9448” MOUNTING DIAMETER
|
.75” OVERALL LENGTH
1.5748” MOUNTING DIAMETER
|
1.00” OVERALL LENGTH
2.3125” MOUNTING DIAMETER
|
1.25” OVERALL LENGTH
Standard Size
(in)
B
Order #
1/4”
.244
1621-244
9/32” .275
1621-275
5/16” .305
1621-305
11/32” .337
1621-337
Standard Size
(in)
B
Order #
1/4”
.244
1422-244
9/32” .275
1422-275
5/16” .305
1422-305
11/32” .337
1422-337
3/8”
.368
1422-368
13/32” .399
1422-399
7/16” .429
1422-429
15/32” .462
1422-462
1/2”
.493
1422-493
17/32” .524
1422-524
9/16” .555
1422-555
19/32” .587
1422-587
5/8”
.618
1422-618
21/32” .649
1422-649
11/16” .681
1422-681
23/32” .712
1422-712
3/4”
.743
1422-743
Standard Size
(in)
B
Order #
11/16” .681
1423-681
23/32” .712
1423-712
3/4”
.743
1423-743
25/32” .774
1423-774
13/16” .805
1423-805
27/32” .835
1423-835
7/8”
.866
1423-866
29/32” .897
1423-897
15/16” .929
1423-929
31/32” .960
1423-960
1”
.991
1423-991
Metric Size
(mm)
B
Order #
6.00mm .228
1621-228
7.00mm .267
1621-267
8.00mm .306
1621-306
9.00mm .346
1621-346
Metric Size
(mm)
B
Order #
6.00mm .228
1422-228
7.00mm .267
1422-267
8.00mm .306
1422-306
9.00mm .346
1422-346
10.00mm .385
1422-385
11.00mm .424
1422-424
12.00mm .462
1422-462
13.00mm .501
1422-501
14.00mm .540
1422-540
15.00mm .580
1422-580
16.00mm .619
1422-619
17.00mm .659
1422-659
18.00mm .698
1422-698
19.00mm .737
1422-737
Metric Size
(mm)
B
Order #
18.00mm .698
1423-698
19.00mm .737
1423-737
20.00mm .775
1423-775
21.00mm .814
1423-814
22.00mm .853
1423-853
23.00mm .893
1423-893
24.00mm .932
1423-932
25.00mm .970
1423-970
26.00mm 1.009
1423-1.009
PHONE:
(586) 465-5000
•
FAX:
(586) 465-3030
NOTE: All dimensions in inches unless otherwise specified
